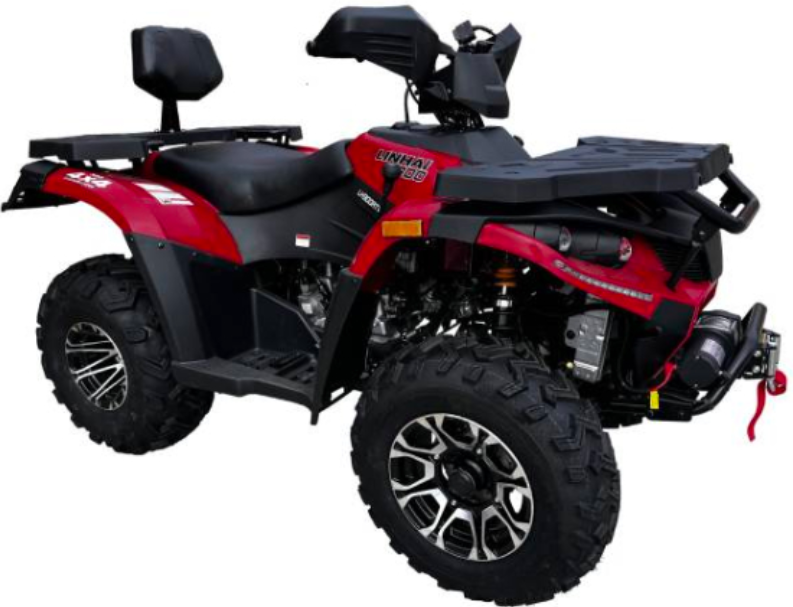

*** 2WD/4WD ***

***With Hitch Ball, Plastic Racks, Winch, Backrest***

Engine Type: 257cc, 4 Stroke, Single Cylinder

Transmission: Automatic L-H-N-R

Cooling System: Liquid-Cooled

Ignition: T.C.I

Starting System: Electric Start

Battery: 12V, 14Ah

Drive Train: Shaft Drive, On-Demand 2WD/4ED

Fuel Capacity: 3.8 Gallons

F/R Brakes: Hydraulic Disc (Hand)/ Hydraulic Disc (Foot)

Max Speed: 40-50 MPH

Front/Rear Tire: 24x8-12, 24x11-10

Suspension Front: Macpherson Independent Suspension

Suspension Rear:  Swing Arm

Wheelbase: 51"

Seat Height: 34"

Ground Clearance: 8"

Max Horsepower: 22 HP

Compression Ratio: 9.8:1

Towing Capacity: 600 LBS

Bore Stroke: 72.39x66.8 mm

Max load: 240 LBS

Weight: G.W. / 750 LBS/ N.W. 650 LBS

Carton Dimensions: L*W*H: 86” x 46”x 33”

Colors: Black, Red, Blue, Army Green, Vista Camo

**Front Hydraulic Brake**

Engine Type: 196.9CC, 4 Stroke, Single Cylinder

Clutch: Manual

Gears: 4 Forward & Reverse

Transmission: Chain, Rear Wheel Drive

Cooling System: Air-cooled

Ignition: CDI

Starting System: Electric Start

Battery: 12V, 9Ah

Final Drive: Chain Drive

Spark Plug: D8RTC

Brakes Rear : Hydraulic Disc (Foot)

Max Speed: 45-55MPH,

Max Weight Capacity: 220LBS

Fuel Type: 92 Or Higher Octane, Unleaded Gasoline

Fuel Capacity: 1.35 Gallons/5.1L

Engine Oil: 0.9L

Front/Rear Tire: 23x7.0-10, 22x10-10

Ground Clearance: 140mm

Front Suspension: Double A-Arm

Rear Suspension: Single Swing Arm

Max Horsepower: 10.2KW/7500R/Min

Max Torque: 14N.M/6000R/Min

Bore Stroke: 63.5x62.2MM

Weight: G.W. / 413.6 LBS/ N.W 360.7 LBS

Carton Dimensions: L*W*H: 58” x 33”x 33”

Colors: Black/Green/Blue/Red/Orange

Engine Type : 169cc, 4 stroke, Single Cylinder

Transmission :  Automatic With Reverse

Cooling System : Air-Cooled

Ignition System : CDI

Starting System : Electric/Kick Start

Battery : 12V, 9Ah

Gearing : CVT + Reverse

Final Drive : Chain Drive

Front Brake : Drum Brake (Hand)

Rear Brake : Hydraulic Disc (Foot)

Fuel Capacity : 7.8L

Front/Rear Tire : 23x7-10/22x10-10

Front Suspension : Double A-Arm

Rear Suspension : Single Swing Arm

Max Speed : 45-55MPH

Max Load : 150LBS

Max Horsepower : 6.0KW/8000r/min

Colors : Metallic Red, Blue, Black, Orange, Green

Engine Type: 169CC, Single Cylinder, 4-Stroke

Transmission: Automatic With Reverse

Cooling System: Air Cooled

Ignition System: CDI

Starting System: Electric /Kicks Start

Gearing: CVT+ Reverse

Final Drive: Chain Drive

Brake Front: Drum Brake (Hand)

Brake Rear: Hydraulic Disc (Foot)

Fuel Tank Capacity: 7.8L

Tire Front/Rear: 23x7-10/22x10-10

Front Suspension : Double A-Arm

Rear Suspension : Single Swing Arm

Engine Oil Capacity:  900 ML

Carburetor No: PD24

Spark Plug No: D7TC

Max Speed : 45-55MPH

Max Load : 180LBS

Bore*Stroke (mm):  57.4 x 57.8 mm

Compression Ratio:  9.5 : 1

Max Horsepower : 6.0KW/8000r/min

Max Torque: 7.8 / 6500 (N.m/R/Min)

Weight: G.W. / 446 LBS/ N.W 420 LBS

Carton Dimensions: L*W*H: 60” x 32”x 29”

Colors : Metallic Red, Blue, Black, Army Green, Army Black
