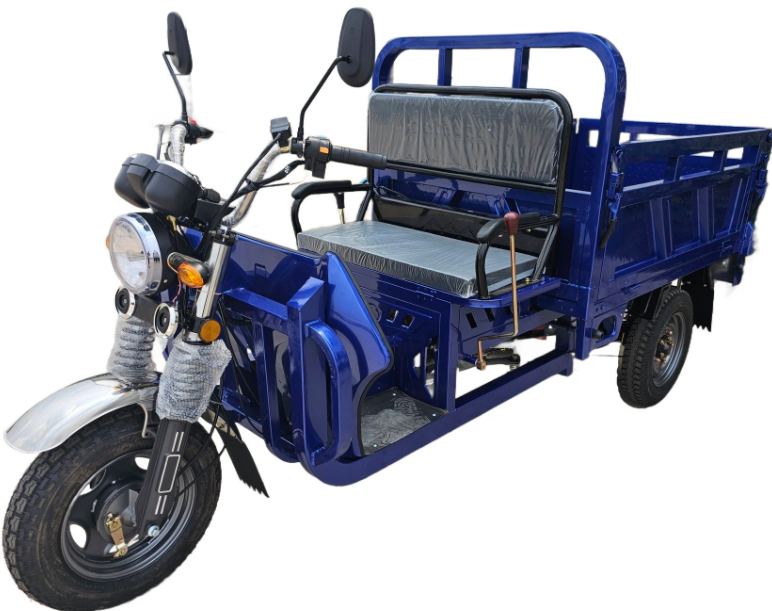

EngiBD 125-12-Tricycle

(Street Legal, Hydraulic Dump Bed)

Engine: 124cc, 4 Stroke, Single Cylinder

Cooling: Air Cooled With Auxiliary Fan

Starter System:   Electric & Kick Start

Final Drive :  Shaft Drive

Ignition system:  CDI

Transmission: Shaft, Automatic L-H-N-R

Discharge: Auto Hydraulic

Battery: 12V & 32AH （7“ x 5” x 6.5”）

Brake Type: Drum, Front (Hand),Rear(Foot),With Hand Parking Brake

Max Speed :  30-40 MPH

Dump Bed Capacity (LBS): 600 -800

Dump Bed Size (Inch): L56”  W36”  H19”

Hydraulic Dump Bed Motor: 12V,0.8KW

Front & Rear Tire: 4.00-12 Tubeless

Gradeability: 25°

Load Capacity (LBS): 1100

Fuel Tank Capacity(L): 20

Ground Clearance: 9.5"

Rear Axle Structure: load-Bearing Rear Axle

Front Shock Absorber:  Hydraulic Shock Absorber

Bore x Stroke: Ф54×54

Reduction ratio: 9.0:1

Max Power Kw(r/min): 6.2/7000

Max Torque N.m(r/min): 9.8/4500

Fuel Consumption Rate(g/kw.h): ≤367

Lubricating System: Compressive+Splash

Wheel Base: 82.5”

Carton Dimensions: 118”x44”x36”

Cargo[JL1]   size: 121” x 43” x 55”

Weight(LBS): G.W: 850, N.W: 750

Color: Red, Blue

Engine Mounting Is Isolated With Springs For Vibration Damping Heavy Duty Rear leaf spring Suspension, Come With Cooling Fan.ne Type: 125CC, 4 Stroke, Single Cylinder

Transmission: Automatic With Reverse, D+N+R

Cooling System: Air-cooled

Ignition: CDI

Starting System: Electric Start

Battery: 12V, 5Ah

Final Drive: Chain Drive, Rear Wheel Drive

F/R Brakes: Hydraulic Disc (foot)

Max Speed: 30-35MPH

Fuel Capacity: 7L

Front/Rear Tire: 16x8.00-7, 17x7.00-8

Max Horsepower: 4.7KW/8000R/Min

Max torque: 6.9/6500±500 (N.m/r/min)

Max load: 180LBS

Weight: G.W:420LBS/N.W:380 LBS

Dimensions Wheelbase: 1310mm

Carton Dimensions: L*W*H: 73” x 45”x 26”

Ground Clearance: 170mm

Colors: Red, Blue, Black, Green, Pink
